Elevated Multi-Band Antenna and Mast (4 to 6 Radio)
Download Brochure

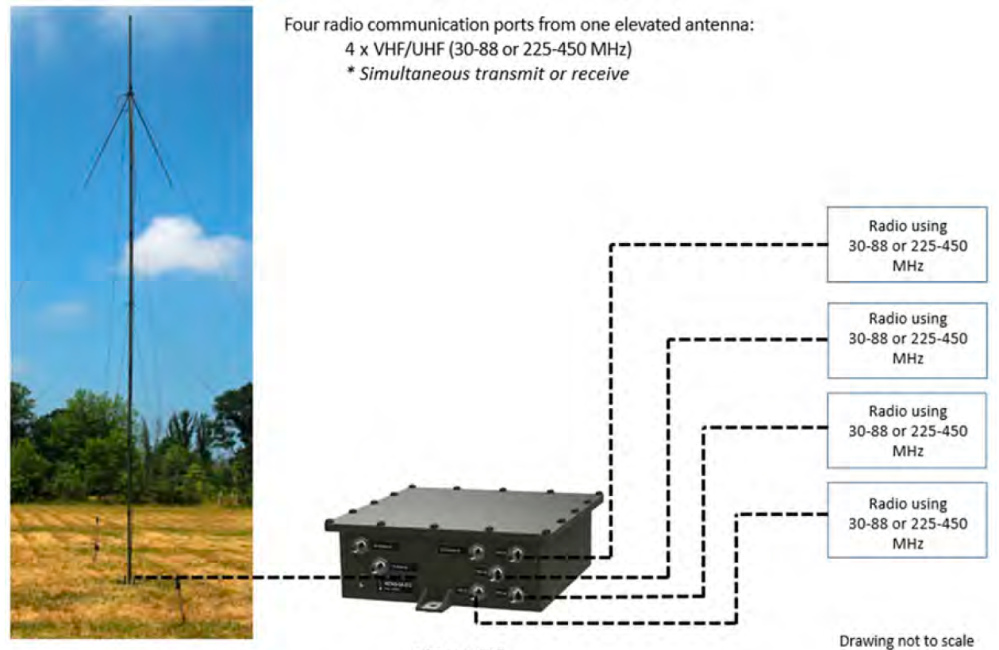

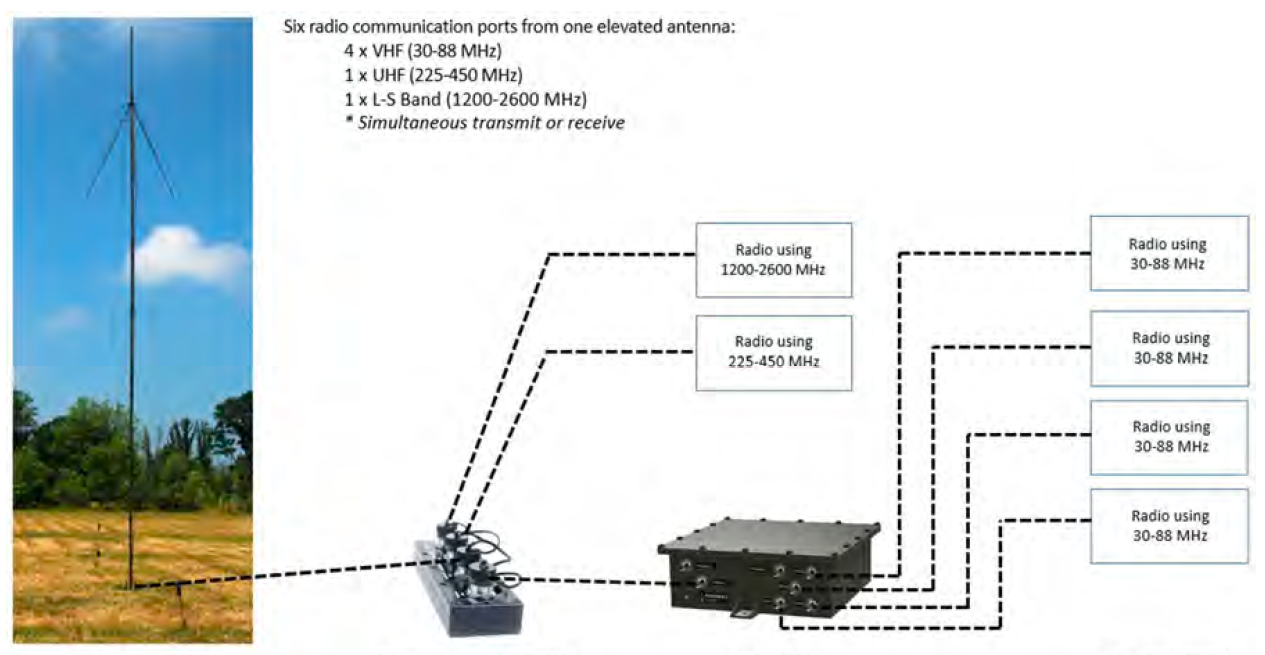

The TSE-ANT-EMB-MST-46 is a tactical 4 to 6 Radio, single-port Antenna with Mast that covers 30-88 MHz, 225-450 MHz and 1200-2600 MHz. It is a one piece tactical antenna designed for use with all modern in service radios covering the band from 30-88 and 225-450 MHz and includes modern radios in the 1200-2600 MHz band. The extra ports covering the modern SRW, ANW2, TSM-X, Wave Relay and Silvus waveforms allows for a full network centric system. Simultaneous transmit and receive.
The modern design gives improved gain and radiation characteristics across the full frequency range. For urgent use or stealth requirements, the antenna can also be sat on the ground with only the tripod support, without the mast.

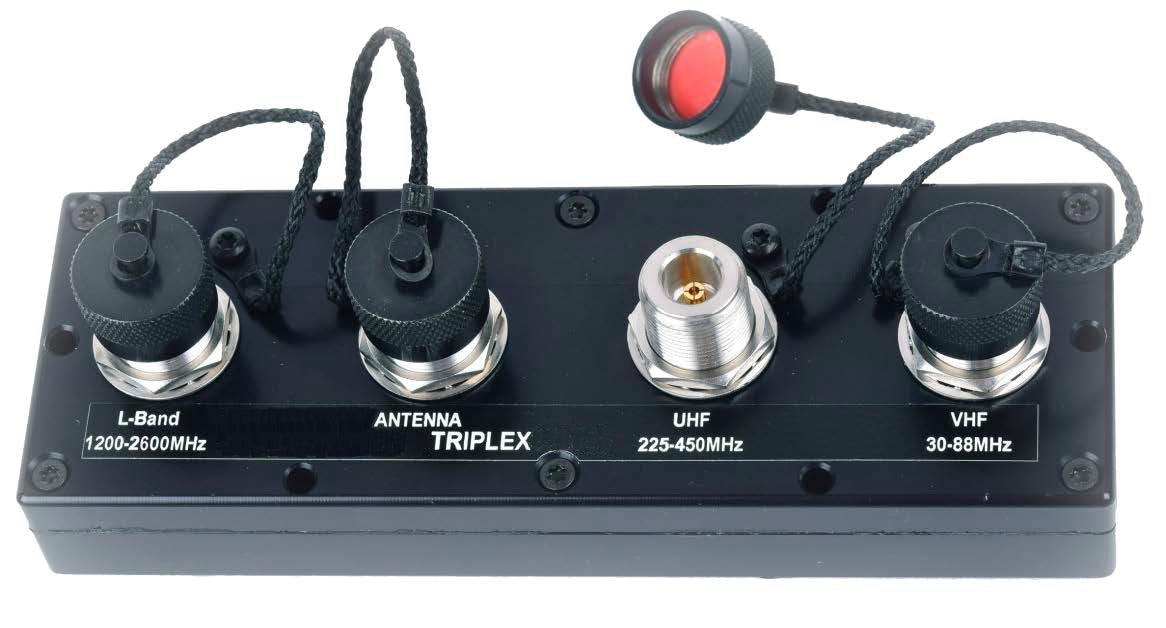

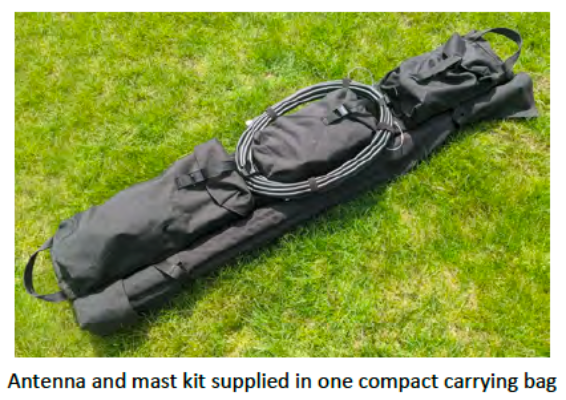

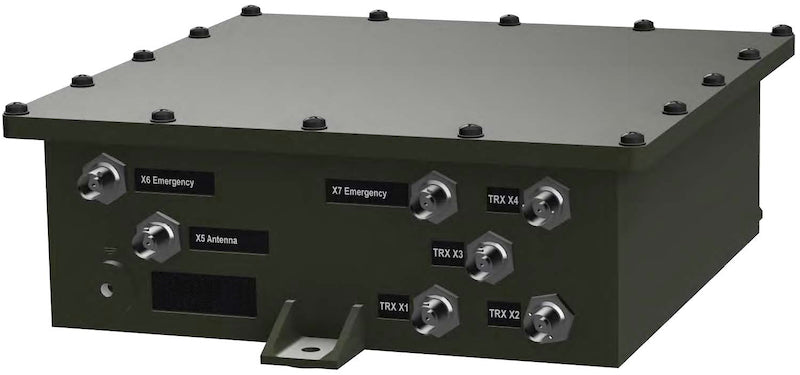

Includes a Triplexer and a Passive Antenna Combiner to allow operators to use multiple carrier frequencies onto a single run of coax, resulting in reduced cost, lower wind-loads and reduced weight. The antenna is the easiest and quickest antenna of this type to mount. All the parts needed to erect a high gain tactical antenna are supplied in the transit bag.
