50 Watt Wide-Band Amplifier Platform
(NSN: 5996-01-591-6955)
Download Brochure

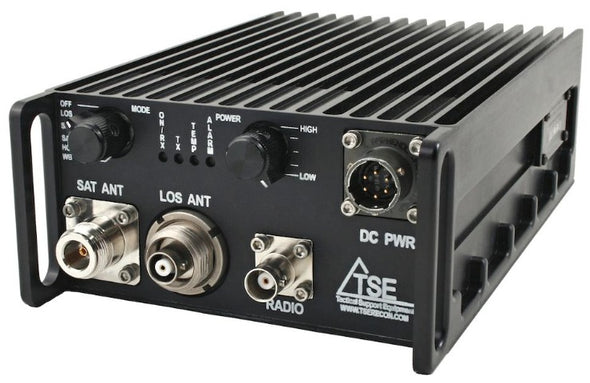

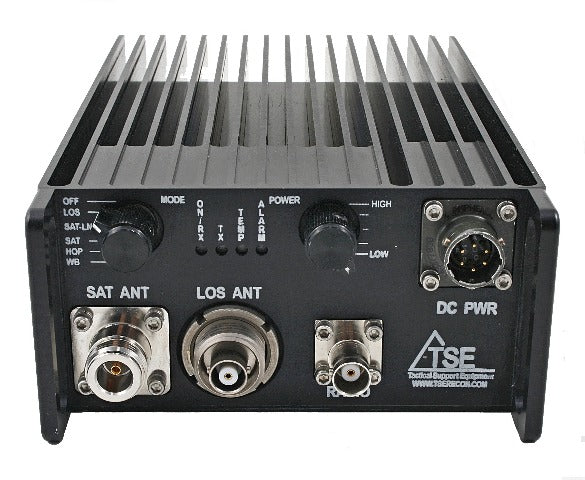

The MB50 Amplifier is the newest, state-of-the-art amplifier from the professionals at TSE, Inc. The MB50 incorporates many improvements over our legendary RAMP-25 amplifier:
High Performance – 20-50 watts output depending on power source and 11db of receive gain across the entire 30-512 MHz range.
Power Output – Operates on a single BA-x90 battery, dashboard power or any 12-30 volt DC power source. Optional dual-battery power cable provides 50 watts power output.
Waveforms – ASCM, IW, SINCGARS, HaveQuick, HPW, ANW2, SRW and DAMA (JITC Certified).
Dual Antenna Ports – Easily toggles between LOS and SATCOM antennas.
Nested BNC Connector – Attach a standard blade, long-whip or ‘Thick UHF’ antenna directly to the amplifier.
