Vehicle HF Loop Antenna
Download Brochure

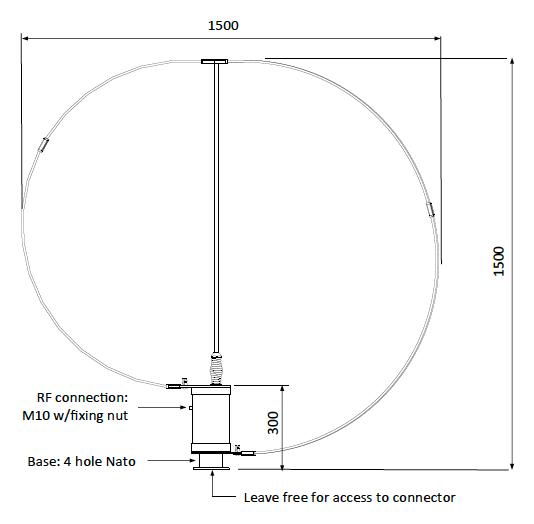

The TSE-ANT-VEHHF-OTM is a compact HF antenna for on-the-move vehicular platforms from 2 to 30 MHz. It is designed to provide superior Near Vertical Incident Skywave (NVIS) performance at distances from 0 to 500 km and allows continuous communications in ground-wave, NVIS and skywave applications. The On the Move Vehicle HF Antenna is a direct replacement for existing whip antennas and uses the same NATO base support. The replacement of the whip by the On the Move Vehicle HF Antenna takes just a few minutes and requires no special installation equipment nor changes to the structure of the vehicle.
